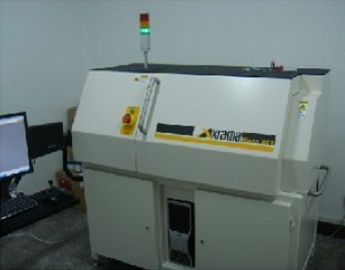

Xradia MicroXCT-200 显微CT
发布时间:2021-04-13 21:00:00


    Xradia MicroXCT-200 显微CT

    生产公司:Xradia (美国)

    仪器型号:MicroXCT-200

    仪器特点:

- 非破坏性的3D成像

- 空间分辨率达到2μm以下,像素分辨率达到1μm以下

- 小型集成式设计,占地面积小

- 灵活的2透镜成像放大系统

- 方便快捷设定扫描参数

- 多点自动扫描,实现高生产率

- 多个探测器满足不同分辨率需求

三个不同探测器参数:

Magnification Level/Lens

Resolution Range (μm)

3D FOV Range (mm)

Standard Lenses (included with every MicroXCT)

2X

10.0-12.0

4.8-12.0

10X

2.5-3.0

2.0-2.7

20X

1.5

1.3

Spatial Resolution and FOV Ranges,by Magnification Level

放置地点:上海市华山路1954号yl6809永利官网教三楼Med-X研究院117室

联系人:刘佳霖

电话: 13611966221

Email:liujialin@sjtu.edu.cn

The Xradia MicroXCT-200

The Xradia MicroXCT-200 provides the unique ability to reveal the internal structure with full 3D imaging of features down to <1.0 micron pixel resolution, making it a compelling alternative for research and the inspection and control of manufacturing processes.

The Xradia MicroXCT-200 delivers superior flexibility with a two-door accessible sample stage that accommodates sample sizes up to 50 mm.


Key benefits:

High-resolution X-ray 3D CT scanning

High-contrast phased enhanced imaging

Broad sample size capability

Non-destructive imaging of samples

Accelerated understanding of internal structural complexity


The Xradia MicroXCT-200 is a new class of 3D X-ray imaging solution optimized for non-destructive imaging of complex internal structures. It enables accelerated, highly efficient analysis of structures examined in a variety of applications:

Semiconductor packaging development and failure analysis

Life-science research

Rock microstructure modeling for oil and gas exploration

Advanced material characterization


Magnification Level/Lens

Resolution Range (μm)

3D FOV Range (mm)

Standard Lenses (included with every MicroXCT)

2X

10.0-12.0

4.8-12.0

10X

2.5-3.0

2.0-2.7

20X

1.5

1.3


Source: 90 kV

Max. voltage: 90 kV

Min. voltage:40 kV

Max. power:8 W


Location: Room 117, Med-X Research Institute, No.3 Teaching Building, Shanghai Jiaotong University, No. 1954 Huashan Road, Shanghai

Contact: Jialin liu

Telephone: 13611966221

Email: liujialin@sjtu.edu.cn
